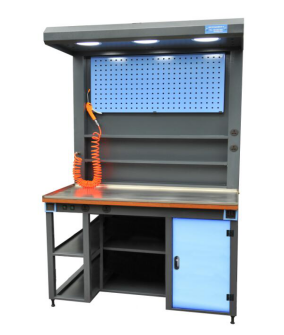

6.Selected Work Bench Model A
Standard sizes：1200L*570W*2000H（mm）
Table size： 1200L*570W*800H（mm）
1- Panel：2.0mm stainless steel panel,Edge 15mm high,14pcs M8 bolts welded through the 25mm thickness wooden backboard
2-Test bad stand：Right side cabinet with lock, two partitions for the maintenance of accessories, tools and so on
3- Light：3pcs full view LED-12W top light
4- Socket：2pcs，International common standard
5- Switch：2pcs，Respectively control both sides and the middle LED dome light on and off
6- Compressed air is introduced into the setting：∅ 8 introduction of a gas source plug 1, the output gas source shortcut plug 1, it is recommended: use away from the test bad
7- Air gun：1pc
8- Out of the duct settings：Optional air filter device, you can form the work area of the desktop area of the positive pressure, to achieve local dust-free operation, to meet the precise maintenance needs
9- Siding frame of the standard configuration：Storage slot board 2pcs
10- Stand support: 4pcs M16 bolts for keeping the table flat .
Detail ：
6.Selected Work Bench Model A
