1.Common rail injector (include piezo ) 2.EUI EUP Test 3.HEUI testing (can test C7, C9, C-9, 3126) 4.HEUI actuation pump test 5.CAT 320D Pump Test 6.The highest Rail pressure is 2700bar 7.CR injector parts Test :solenoid Valve test ,Openig pressure test, Opening pulse width test 8.CR injector resistance and inductance Test 9.AHE dynamic armature stroke test 10:Test one times injection 11.CR pump test 12.CR pump metering unit resistance and inductance test 13.Cr pump camshaft sensor resistance and inductance test 14.Cr pump pcv,imv resistance and inductance test 15.Cr Pump Parts Test :ZME,DRV 16.Common rail pipes with filter function 17.Oil tank and diesel tank with force cooling 18.QR code (DENSO Delphi Siemens Cunnins Bosch and Piezo injector

Optional function 1.Mechanical pump test 2.EDC VP37 Pump test 3.VP44 Pump Test 4.ZEXEL in-line pump RED4 test 5.ECD Denso V3,V4,V5 Pump Test 6.BIP Fuction 7.Three stations 8.HPI Cummins (X15 QSK60) 9.PT Cummins Test 10.HEUI (3408, 3412, ISUZU)

Technical parameter 1.Out put power: 18.5kw /22KW 2.Speed:0-4000RMP 3.Speed Contral mode :Frequency Converter 4.Input power: 380V/50hz/3phase / 220V/60hz/3phase 5. Rotation speed: 0~4000RPM 6.Coling System: Air Conditioning units Strong Cooling 7. Rail high pressure: 0～2700 bar 8.Diesel Low Pressure:0-25Bar 9.Flow Sensor :(2pcs Made in Australia) 10.Flow Sensor :(2pcs Made in German) 11.Diesel Tank: 40L 2Pcs 12.Engine oil tank:40L 1pc 13.Fuel Temperature:40+2℃ 14. Size: 2.26*1.61*2.10m 15. Wight: 1500kg

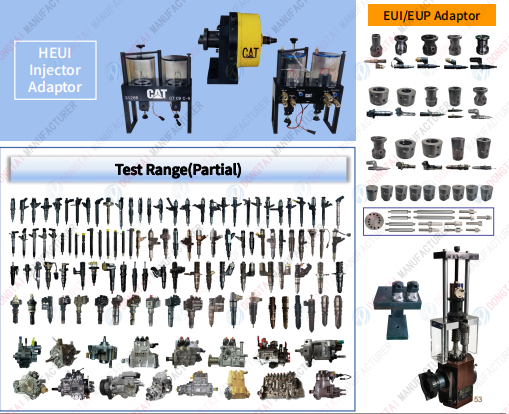

Detail ：
